前端代码片段收藏
| 同时生成条码二维码 | 批量下载图片 | 导出Excel |
|---|---|---|
| 解析Excel，修改后导出 | vue-router@3.x部署更新提示 | vue指令，右键打开数字软键盘 |
| ElementUI-Table，列拖拽排序 | ElementUI-Table，自定义列组件 | ElementUI-Table，嵌套表格 |
| Echarts地图下钻 |
同时生成条码二维码
使用
jsbarcode生成条形码，qrcode生成二维码
使用canvas合并生成的条形码、二维码
import JsBarCode from 'jsbarcode'
import QRCode from 'qrcode'
/**
* 生成条码Promise，仅条形码可以生成内容
*/
const getBarCodePromise = code => {
return new Promise((resolve, reject) => {
try {
const canvas = document.createElement('canvas')
// 根据字符长度计算条码高度
let h = code.length * 80
if (h > 360) h = 360
else if (h < 120) h = 120
JsBarCode(canvas, code, {
format: 'CODE39',
text: `${code}`.split('').join(' '), // 条码内容增加空格间隔
font: 'Microsoft YaHei',
fontOptions: 'bold',
fontSize: 120,
width: 6, // 宽度是条码内容format之后的串的间隔，可参照文档或源码
height: h, // 内容越长高度显得越小，可通过上面简单高度计算以及限制
margin: 10
})
// 生成图片对象
const img = new Image()
img.setAttribute('crossOrigin', 'anonymous') // 设置允许跨域访问
img.onload = () => {
// 图片加载完之后resolve
resolve(img)
}
img.src = canvas.toDataURL('image/png')
} catch (error) {
reject(error)
}
})
}
/**
* 生成二维码Promise
*/
const getQrCodePromise = code => {
return new Promise((resolve, reject) => {
try {
// 生成base64
QRCode.toDataURL(code, {
errorCorrectionLevel: 'H',
version: 4,
maskPattern: 7,
margin: 1,
width: 500
}, (e, url) => {
// 生成图片对象
const img = new Image()
img.setAttribute('crossOrigin', 'anonymous') // 设置允许跨域访问
img.onload = () => {
// 图片加载完之后resolve
resolve(img)
}
img.src = url
})
} catch (error) {
reject(error)
}
})
}
/**
* 合并生成条码二维码图片并返回base64图片
* @param {String} code
* @return {String} base64
*/
export default code => {
// 生成条码，并加载到Image对象中resolve
const barCodePromise = getBarCodePromise(code)
// 生成二维码，并加载到Image对象中resolve
const qrCodePromise = getQrCodePromise(code)
// 合并图片
return new Promise((resolve, reject) => {
Promise.allSettled([barCodePromise, qrCodePromise]).then(([{ value: barImg }, { value: qrImg }]) => {
try {
if (barImg && qrImg) {
// 使用canvas合并图片
const canvas = document.createElement('canvas')
const ctx = canvas.getContext('2d')
canvas.width = barImg.width
canvas.height = barImg.height + barImg.width
// 竖向排列条码、二维码
ctx.drawImage(barImg, 0, 0, barImg.width, barImg.height)
ctx.drawImage(qrImg, 0, barImg.height, barImg.width, barImg.width)
// 生成图片url
const url = canvas.toDataURL('image/png')
// resolve合并后base64
resolve(url)
} else {
reject(new Error(`生成二维码失败：${code}`))
}
} catch (error) {
reject(error)
}
}).catch(reject)
})
}
批量下载图片
使用
jszip批量下载图片zip文件
import ZIP from 'jszip'
import drawCode from './draw-code' // 1 中生成图片base64的方法
export default = codeArr => {
// loading start
const zip = new ZIP()
const promises = codeArr.map(code => new Promise((resolve, reject) => {
// 图片生成base64，此处使用 1 中方法，也可通过canvas的toDataURL将图片转为base64
drawCode(code).then(url => {
const [, data] = url.split(',')
// zip.file第一个参数为key，不能重复
zip.file(`条码二维码/${code}_条形码_二维码.png`, data, { base64: true })
resolve()
}).catch(reject)
}))
Promise.all(promises).then(() => {
zip.generateAsync({ type: 'blob' }).then(data => {
const url = window.URL.createObjectURL(data)
const link = document.createElement('a')
link.href = url
link.setAttribute('download', '批量生成条码二维码.zip')
link.click()
// 回收URL
window.URL.revokeObjectURL(url)
})
}).finally(() => {
// loading end
})
}
导出Excel
使用
xlsx导出excel
并将数据每60000条切分，单独生成一个sheet页splitArray切分数组可参照
import XLSX from 'xlsx'
/**
* 导出Excel
*/
export const exportExcel = (data, name) => {
if (!name) name = `${Date.now()}.xlsx`
const wb = XLSX.utils.book_new()
const ws = XLSX.utils.aoa_to_sheet(data)
XLSX.utils.book_append_sheet(wb, ws, 'SheetJS')
XLSX.writeFile(wb, name)
}
/**
* 导出Excel，多sheet页
*/
export const exportExcel = (datas, name) => {
if (!name) name = `${Date.now()}.xlsx`
const wb = XLSX.utils.book_new()
const sheets = Object.keys(datas)
for (const s of sheets) {
const ws = XLSX.utils.aoa_to_sheet(datas[s])
XLSX.utils.book_append_sheet(wb, ws, s)
}
XLSX.writeFile(wb, name)
}
/**
* 导出excel，超过60000条自动分sheet页
* @param {*} data
* @param {*} name
*/
export const exportExcel = (data, name) => {
if (!name) name = `${Date.now()}.xlsx`
const wb = XLSX.utils.book_new()
const header = data[0]
const arr = splitArray(data, 60000)
for (let i = 0; i < arr.length; i++) {
const d = arr[i]
if (i > 0) {
d.unshift(header)
}
const ws = XLSX.utils.aoa_to_sheet(d)
XLSX.utils.book_append_sheet(wb, ws, `Sheet${i + 1}`)
}
XLSX.writeFile(wb, name)
}
解析Excel，修改后导出
使用excel公式
{ t:'n', f: 'excel公式' }
使用excel公式导出后需要启用编辑公式才能生效
/*
<form id="formWrap">
<input type="file" id="fileInput" />
</form>
*/
import XLSX from 'xlsx'
const formWrap = document.getElementById('formWrap')
const keys = ['id', 'productCode', 'printePrice', 'paperPrice', 'totalPrice', 'totalTechfee', '误差']
function dataArrange (items, arr) {
arr.forEach((item, index) => {
try {
const reqinfo = JSON.parse(item.reqinfo)
const resinfo = JSON.parse(item.resinfo)
const { productCode } = reqinfo.data
const { printePrice, paperPrice, totalPrice, totalTechfee } = resinfo.data
items.push([
item.id,
productCode,
printePrice,
paperPrice,
totalPrice,
totalTechfee,
{ t:'n', f: `=ROUND(E${index + 2}-C${index + 2}-D${index + 2}-F${index + 2}, 2)` } // 使用excel公式
])
} catch (error) {
}
})
}
document.getElementById('fileInput').onchange = e => {
const [file] = e.target.files
if (!file) return
const reader = new FileReader()
reader.onload = ({ target }) => {
const data = new Uint8Array(target.result)
const workbook = XLSX.read(data, { type: 'array' }) // 读取excel文件
const worksheet = workbook.Sheets[workbook.SheetNames[0]] // 取第一个sheet页
const dataArr = XLSX.utils.sheet_to_json(worksheet) // 将数据转为json
const items = [keys]
dataArrange(items, dataArr)
exportExcel(items, file.name) // 上面 3 中导出excel
setTimeout(() => formWrap.reset(), 1) // 重置表单情况input file
}
reader.readAsArrayBuffer(file)
}
vue-router@3.x部署更新提示
vue-router@3.x中检测网络异常提示
加载资源失败时，提示重新加载（结合Element-UI）
this.$router.push({
name,
params,
query
}).catch(e => {
if (!navigator.onLine) {
this.$msg.warning('网络异常，请检查网络连接！')
return
}
/^Loading.*?failed./i.test(e.message) && this.$confirm('系统已更新，需要刷新重新加载页面！', '提示', {
type: 'warning',
confirmButtonText: '刷新',
showCancelButton: false,
closeOnHashChange: false
}).then(() => {
location.reload()
}).catch(() => {})
})

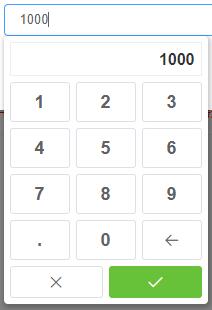

vue指令，右键打开数字软键盘
数字软键盘指令，配合ElementUI InputNumber、Input组件使用
注册指令：Vue.directive('num-input', NumInput)
使用指令：<InputNumber v-num-input />
import Vue from 'vue'
import NumBox from './main.vue'
const NumBoxConstructor = Vue.extend(NumBox)
// 软键盘实例，只生成一个到body
let instance
const initInstance = () => {
instance = new NumBoxConstructor({
el: document.createElement('div')
})
document.body.appendChild(instance.$el)
}
export default {
bind (el, binding, vnode) {
if (!instance) {
initInstance()
}
// 右键打开数字软键盘，触摸设备长按激活
el.addEventListener('contextmenu', e => {
e.preventDefault()
const { top, left, height } = el.getBoundingClientRect()
instance.position = { top: top + height, left }
instance.vnode = vnode.child
instance.value = vnode.child.value || ''
setTimeout(() => {
instance.visible = true
}, 1)
})
}
}
<template>
<transition name="num-box-fade">
<div v-show="visible" class="num-box-container" :style="positionStyle" @click="clickHandle">
<div class="show-box">
<span v-text="value"></span>
</div>
<div class="input-box">
<Button v-for="(s, i) in '123456789.0'.split('')" :key="`btn_${i}`" v-text="s" @click="() => inputHandle(s)"></Button>
<Button icon="el-icon-back" :disabled="value.length <= 0" @click="backspaceHandle"></Button>
</div>
<div class="operate-box">
<Button icon="el-icon-close" @click="closeHandle"></Button>
<Button icon="el-icon-check" type="success" @click="commitHandle"></Button>
</div>
</div>
</transition>
</template>
<script>
import store from '@/store'
export default {
name: 'NumBox',
computed: {
positionStyle ({ position }) {
const { allWidth } = store.state.app.screen
let { top, left } = position
if (allWidth - left < 209) {
left = allWidth - 209
}
return `top: ${top}px; left: ${left}px`
}
},
data () {
return {
visible: false,
position: {
top: 0,
left: 0
},
vnode: null, // InputNumber 虚拟节点
value: '' // 当前输入的值
}
},
mounted () {
// 点击软键盘以外的区域关闭软键盘
document.body.addEventListener('click', this.closeHandle)
// esc 关闭软键盘
document.body.addEventListener('keydown', this.escapeHandle)
},
beforeDestroy () {
// 解除事件绑定
document.body.removeEventListener('click', this.closeHandle)
document.body.removeEventListener('keydown', this.escapeHandle)
},
methods: {
// 确认输入
commitHandle () {
if (!this.vnode) return
const { setCurrentValue, handleInput } = this.vnode
// 调用InputNumber的setCurrentValue设置输入的值
if (setCurrentValue) {
setCurrentValue(this.value)
} else if (handleInput) {
handleInput({ target: { value: this.value } })
}
// 确认输入后关闭软键盘
this.closeHandle()
},
// 输入处理，祖父穿拼接
inputHandle (val) {
this.value += val
},
// 退格键删除最后一个字符
backspaceHandle () {
const val = `${this.value}`
if (val.length > 1) {
this.value = val.substring(0, val.length - 1)
} else {
// 如果仅剩一个字符摁退格键时直接清空
this.value = ''
}
},
// 关闭数字软键盘
closeHandle () {
this.visible = false
if (!this.vnode) return
const { blur, focus, setCurrentValue } = this.vnode
if (!setCurrentValue) {
focus && focus()
setTimeout(() => {
blur && blur()
this.vnode = null
}, 100)
} else {
this.vnode = null
}
},
// esc 关闭软键盘
escapeHandle (e) {
if (e.code === 'Escape') {
this.closeHandle()
}
},
// 数字软键盘点击时阻止冒泡，防止触发body事件关闭
clickHandle (e) {
e.stopPropagation()
}
}
}
</script>
<style lang="scss" scoped>
.num-box-container {
position: fixed;
z-index: 5000;
padding: 6px;
background-color: #FFF;
border-radius: 4px;
box-shadow: 1px 2px 4px 2px rgba(0, 0, 0, .2);
.show-box {
height: 34px;
line-height: 34px;
margin-bottom: 6px;
overflow: hidden;
font-size: 16px;
font-weight: 600;
width: 192px;
display: flex;
justify-content: flex-end;
border: 1px solid #EEE;
box-sizing: border-box;
padding: 0 6px;
user-select: none;
span {
text-align: right;
}
}
.input-box {
display: grid;
grid-template-columns: repeat(3, 60px);
grid-template-rows: repeat(4, 40px);
grid-gap: 6px;
}
.operate-box {
margin-top: 6px;
display: grid;
grid-template-columns: repeat(2, 93px);
grid-template-rows: repeat(1, 32px);
grid-gap: 6px;
button {
padding: 0;
}
}
button {
margin: 0;
font-size: 18px;
font-weight: 600;
}
}
.num-box-fade-enter-active {
-webkit-animation: num-box-fade-in .3s;
animation: num-box-fade-in .3s;
}
.num-box-fade-leave-active {
-webkit-animation: num-box-fade-out .3s;
animation: num-box-fade-out .3s;
}
@-webkit-keyframes num-box-fade-in {
0% {
opacity: 0;
}
100% {
opacity: 1;
}
}
@keyframes num-box-fade-in {
0% {
opacity: 0;
}
100% {
opacity: 1;
}
}
@-webkit-keyframes num-box-fade-out {
0% {
opacity: 1;
}
100% {
opacity: 0;
}
}
@keyframes num-box-fade-out {
0% {
opacity: 1;
}
100% {
opacity: 0;
}
}
</style>
ElementUI-Table，列拖拽排序
<template>
<div :class="{ 'drag-table': true, 'drag-table_moving': dragState.dragging }">
<Table
v-loading="loading"
ref="tableRef"
:data="data"
:border="border"
:height="height"
:show-summary="showSummary"
:cell-class-name="cellClassName"
:header-cell-class-name="headerCellClassName"
:summary-method="summaryMethod"
:row-class-name="rowClassName"
@cell-dblclick="tableDbClickHandle"
@row-contextmenu="rowContextmenuHandle">
<slot name="before"></slot>
<template v-for="(col, index) in tableHeader">
<TableColumn
show-overflow-tooltip
header-align="center"
align="center"
:resizable="false"
:key="index"
:column-key="`${index}`"
:class-name="col.className"
:type="col.type"
:index="col.indexHandle"
:prop="col.prop"
:label="col.label"
:min-width="col.width">
<div
slot="header"
slot-scope="{ column }"
class="thead-cell"
@mousedown="e => handleMouseDown(e, column)"
@mousemove="e => handleMouseMove(e, column)">
<a class="table-header-label" v-text="column.label"></a>
<span class="table-virtual"></span>
</div>
</TableColumn>
</template>
<slot name="after"></slot>
</Table>
</div>
</template>
<script>
/**
* slot="before" header渲染位置之前
* slot="after" header渲染位置之后
* @drag-complete="dragComplete" 返回新的header数据，可在页面初始化时赋值给header
*/
/*
const columns = [
{ prop: 'a', label: 'AA', width: '130' },
{ prop: 'b', label: 'BB', className: 'user-select-all', width: '120' },
{ prop: 'c', label: 'CC', width: '130' }
]
<DragTable
:loading="listLoading"
show-summary
ref="tableRef"
class="table-expand"
:height="tableHeight"
:header="columns"
:data="tableData.list"
:summary-method="getSummaries"
:row-class-name="rowClassHandle"
@cell-dblclick="tableDbClickHandle"
@row-contextmenu="rowContextmenuHandle"
@drag-complete="tableDragComplete">
<TableColumn slot="before" header-align="center" align="center" width="70" type="index" label="序号" :index="indexHandle" />
<template slot="after">
<TableColumn header-align="center" align="center" width="80" prop="d" label="DD" :formatter="ddFormatter" />
<TableColumn header-align="center" align="center" width="90" prop="_operation" label="操作" fixed="right">
<div class="table-operation" slot-scope="scope">
<Button type="text" style="color: #19BE6B" @click="() => detail(scope)">查看</Button>
</div>
</TableColumn>
</template>
</DragTable>
*/
// 初始化拖拽状态对象
const dragState = {
start: NaN, // 起始元素的 index
end: NaN, // 移动鼠标时所覆盖的元素 index
dragging: false, // 是否正在拖动
direction: undefined // 拖动方向
}
export default {
name: 'DragTable',
computed: {
// before插槽数量
beforeLength ({ $slots }) {
return ($slots.before && $slots.before.length) || 0
}
},
props: {
// 表格数据
data: {
type: Array,
default: () => []
},
// colums数据[{ width: 150, prop: '', label: '', className: '' }]
// width -> TableColumn min-width
// className -> TableColumn class-name
// indexHandle -> TableColumn type="index" 索引生成方法
header: {
type: Array,
default: () => []
},
// 数据loading状态
loading: {
type: Boolean,
default: false
},
// 是否显示表格边框，默认显示
border: {
type: Boolean,
default: true
},
// 表格高度
height: {
type: Number,
default: 100
},
// 是否显示汇总行，默认false不显示
showSummary: {
type: Boolean,
default: false
},
// 汇总方法，showSummary 为true，需设置
summaryMethod: {
type: Function,
default: ({ columns }) => columns.map(() => '')
},
// 行样式
rowClassName: {
type: Function,
default: () => ''
}
},
data () {
return {
tableHeader: this.header,
dragState: { ...dragState }
}
},
watch: {
header (val) {
// 传入的header数据同步到当前tableHeader，解决不定列的问题
this.tableHeader = val
}
},
methods: {
// 触发表格doLayout，可以直接通过DragTable的ref属性获取组件后调用
doLayout () {
this.$refs.tableRef.doLayout && this.$refs.tableRef.doLayout()
},
// 表格双击事件
tableDbClickHandle (row, column) {
this.$emit('cell-dblclick', { row, column })
},
// 右键菜单事件
rowContextmenuHandle (row, column, e) {
this.$emit('row-contextmenu', { row, column, e })
},
// 按下鼠标开始拖动
handleMouseDown (e, { columnKey }) {
this.dragState.dragging = true
this.dragState.start = +columnKey
// 给拖动时的虚拟容器添加宽高
const table = this.$refs.tableRef.$el
const virtual = table.querySelectorAll('.table-virtual')
// 计算滚动条向右滑动，左侧滚动量
const { scrollLeft } = table.querySelector('.el-table__header-wrapper')
for (const item of virtual) {
item.style.height = `${table.clientHeight - 1}px`
item.style.width = `${item.parentElement.parentElement.clientWidth}px`
item.style.marginLeft = `${-scrollLeft - 1}px`
}
document.addEventListener('mouseup', this.handleMouseUp)
},
// 鼠标放开结束拖动
handleMouseUp () {
this.dragColumn(this.dragState)
// 初始化拖动状态
this.dragState = { ...dragState }
document.removeEventListener('mouseup', this.handleMouseUp)
},
// 拖动中
handleMouseMove (e, { columnKey }) {
if (this.dragState.dragging) {
// 记录起始列
const index = +columnKey
if (index - this.dragState.start !== 0) {
// 判断拖动方向
this.dragState.direction = index - this.dragState.start < 0 ? 'left' : 'right'
this.dragState.end = index
} else {
this.dragState.direction = undefined
}
} else {
return false
}
},
// 拖动易位
dragColumn ({ start, end, direction }) {
const tempData = []
const left = direction === 'left'
const min = left ? end : start - 1
const max = left ? start + 1 : end
for (let i = 0; i < this.tableHeader.length; i++) {
if (i === end) {
tempData.push(this.tableHeader[start])
} else if (i > min && i < max) {
tempData.push(this.tableHeader[left ? i - 1 : i + 1])
} else {
tempData.push(this.tableHeader[i])
}
}
this.tableHeader = tempData
// 拖拽完成，emit drag-complete事件，返回当前columns数据
this.$emit('drag-complete', tempData)
},
// 当前拖拽列（theader）样式计算
headerCellClassName ({ columnIndex }) {
const { start, end, direction } = this.dragState
const activeClass = columnIndex - this.beforeLength === end ? `drag-active-${direction}` : ''
const startClass = columnIndex - this.beforeLength === start ? 'drag-start' : ''
return `${activeClass} ${startClass}`
},
// 当前拖拽列（tbody）样式计算
cellClassName ({ columnIndex }) {
return (columnIndex - this.beforeLength === this.dragState.start) ? 'drag-start' : ''
}
}
}
</script>
<style lang="scss">
.drag-table {
.el-table .drag-start {
background-color: #f3f3f3;
}
.el-table .el-table__header-wrapper {
th {
padding: 0;
.table-header-label {
padding: 8px 0;
}
.table-virtual{
position: fixed;
display: block;
width: 0;
height: 0;
background: none;
border: none;
}
&.drag-active-left {
.table-virtual {
border-left: 2px dotted #666;
z-index: 99;
}
}
&.drag-active-right {
.table-virtual {
border-right: 2px dotted #666;
z-index: 99;
}
}
}
div.cell {
padding: 0 !important;
position: relative;
}
.thead-cell {
padding: 0;
display: flex;
flex-direction: column;
align-items: left;
cursor: pointer;
overflow: initial;
&:before {
content: "";
position: absolute;
top: 0;
left: 0;
bottom: 0;
right: 0;
}
}
}
/* .el-table__fixed,
.el-table__fixed-right {
z-index: 101;
background-color: #FFF;
} */
&.drag-table_moving {
.el-table th .thead-cell{
cursor: move !important;
}
.el-table__fixed,
.el-table__fixed-right {
cursor: not-allowed;
}
}
}
</style>
ElementUI-Table，自定义列组件
<!-- custom-table-columns/main.vue -->
<template>
<Dialog
top="7%"
class="dialog-without-footer"
width="620px"
:visible="visible"
:close-on-click-modal="false"
@close="visible = false">
<div slot="title" class="custom-table-columns-title">
<span>自定义列</span>
<small>勾选需要显示的列，上下拖动 <i class="el-icon-rank"></i> 图标行排序。</small>
</div>
<div class="custom-table-columns-wrap">
<Draggable v-model="columns" tag="div" :animation="100" handle=".sort-drag-handle" ghost-class="ghost-column">
<transition-group type="transition" name="flip-list">
<div v-for="(c, i) in columns" :key="`columns-item_${i}`" class="columns-item" :class="{ 'unselected': c.show !== '1' }">
<Checkbox v-model="c.show" true-label="1" false-label="0">
<span v-text="c.label" class="columns-item-label"></span>
</Checkbox>
<i class="el-icon-rank sort-drag-handle"></i>
</div>
</transition-group>
</Draggable>
</div>
<div class="dialog-footer-btns" style="padding-top: 17px; margin: 0 -5px -5px 0">
<Button type="info" @click="reset">重置</Button>
<Button type="success" :disabled="commitDisabled" :loading="loading" @click="commit">保存</Button>
<Button @click="visible = false">关闭</Button>
</div>
<div slot="footer"></div>
</Dialog>
</template>
<script>
import Draggable from 'vuedraggable'
export default {
name: 'CustomTableColumns',
components: { Draggable },
computed: {
commitDisabled () {
return !this.columns.some(({ show }) => show === '1')
}
},
props: {
onSave: Function
},
data () {
return {
// 当前列数据
columns: [],
// 原始列数据
originColumns: [],
// 弹出层显示标识
visible: false,
// 保存loading
loading: false
}
},
methods: {
// 保存
commit () {
// 调用onSave方法，columns数据 复制并设置新的sort值，同时回调函数提供close和loading方法
this.onSave && this.onSave(this.columns.map((item, index) => ({ ...item, sort: index })), {
close: () => {
this.visible = false
},
loading: loading => {
this.loading = loading
}
})
},
// 重置列表，完全复制原始数据到当前列数据中
reset () {
this.columns = this.originColumns.map(item => ({ ...item }))
}
}
}
</script>
<style lang="scss" scope>
.custom-table-columns-title {
font-size: 16px;
span, small {
display: inline-block;
margin-top: -4px;
}
span {
margin-right: 15px;
}
small {
font-size: 12px;
color: #777;
}
i {
font-weight: 600;
}
}
.custom-table-columns-wrap {
max-height: 450px;
overflow-y: auto;
margin: -13px -7px 0 -5px;
.sort-drag-handle {
cursor: move;
font-size: 18px;
padding: 7px 10px;
}
.columns-item {
display: flex;
justify-content: space-between;
align-items: center;
box-sizing: border-box;
padding: 0 10px 0 20px;
background-color: #F5F5F5;
border-left: 1px solid #DDD;
border-right: 1px solid #DDD;
border-top: 1px solid #DDD;
&:last-child {
border-bottom: 1px solid #DDD;
}
&.unselected {
color: #AAA;
background-color: #FCFCFC;
}
.columns-item-label {
display: inline-block;
padding: 0 10px;
}
&.ghost-column {
background-color: #E2E2E2;
}
}
.flip-list-move {
transition: transform 0.5s;
}
}
</style>
/* custom-table-columns/index.js */
import Vue from 'vue'
import CustomTableColumns from './main.vue'
const CustomTableColumnsConstructor = Vue.extend(CustomTableColumns)
let instance
const initInstance = () => {
instance = new CustomTableColumnsConstructor({
el: document.createElement('div')
})
document.body.appendChild(instance.$el)
}
export default options => {
if (Vue.prototype.$isServer) return
if (!instance) {
initInstance()
}
// 复制当前列数据到columns
instance.columns = options.columns ? options.columns.map(item => ({ ...item })) : []
// 复制原始列数据到columns
instance.originColumns = options.originColumns ? options.originColumns.map(item => ({ ...item })) : []
// 为onSave方法赋值
instance.onSave = options.onSave || (() => {})
// 打开弹出层
setTimeout(() => {
instance.visible = true
}, 1)
}
/* mixins/custom-table.js */
import setTableColumns from '_c/custom-table-columns'
/*
自定义表格列
1、Table需要有ref="tableRef"
2、列数据COLUMNS_DATA
3、混入import MixinsCustomTable from '_m/custom-table'
4、初始化或者工序发生改变的位置调用getCustomTableColumns获取保存的列数据
5、有统计行的Table，操作TableColumn要有prop="_operation"
[{
prop: 'id', // TableColumn prop属性
label: 'id标识', // TableColumn label属性
width: '120', // min-width
className: 'user-select-all', // 【可选】TableColumn class-name属性
formatter: 'stateFormatter', // 【可选】TableColumn formatter方法key值
sortable: '1', // 【可选】TableColumn中是否排序字段，1：排序，0：不排序，默认：0
sort: 1, // 排序
show: '1', // 是否显示字段，0：不显示，1：显示，默认：1
filter: true // 【可选】是否需要过滤，根据业务控制该字段是否存在于当前列表
}]
一、默认方式，推荐
<Table ref="tableRef" data="list">
<TableColumn
v-for="(c, i) in showColumns"
show-overflow-tooltip
header-align="center"
align="center"
:key="i"
:min-width="c.width"
:prop="c.prop"
:label="c.label"
:sortable="c.sortable === '1'"
:class-name="c.className"
:formatter="{ stateFormatter }[c.formatter] || null" />
</Table>
二、需自定义内容，:formatter无效，需手动调用转换
<Table ref="tableRef" data="list">
<TableColumn
v-for="(c, i) in showColumns"
show-overflow-tooltip
header-align="center"
align="center"
:key="i"
:min-width="c.width"
:prop="c.prop"
:label="c.label"
:sortable="c.sortable === '1'"
:class-name="c.className">
<template slot="header" slot-scope="{ column }">
<span v-if="column.property === 'id'" v-text="column.label" style="color: red"></span>
<span v-else v-text="column.label"></span>
</template>
<template slot-scope="{ row }">
<span v-text="c.prop === 'state' ? stateFormatter(row) : row[c.prop]" :style="`color: ${c.prop === 'id' ? 'red' : ''}`"></span>
</template>
</TableColumn>
</Table>
后端代码
// id，32位uuid
@Id
private String id;
// 所在菜单，路由地址
private String menu;
// 车间
private String workshop;
// 工序
private String gxName;
// 工号，empCode
private String empCode;
// TableColumn中prop属性
private String prop;
// TableColumn中label属性
private String label;
// TableColumn中min-width属性
private String width;
// TableColumn中class-name属性
private String className;
// TableColumn中formatter方法key
private String formatter;
// TableColumn中是否排序字段，1：排序，0：不排序，默认：0
private String sortable;
// 字段排序
private Integer sort;
// 是否显示，1：显示，0：不显示，默认：1
private String show;
@Override
@Transactional
@ServiceExceptionHandler
public boolean updateCustomTableBatch(String workshop, String gxName, String menu, List<CustomTable> ctList, HttpServletRequest request) {
// 获取当前用户empCode
String empCode = getUserIdByRequest(request);
// 创建条件
CustomTable condition = new CustomTable();
condition.setEmpCode(empCode);
condition.setWorkshop(workshop);
condition.setGxName(gxName);
condition.setMenu(menu);
// 删除原有数据
delete(condition);
// 重新插入新数据
ctList.stream().forEach(item -> {
// 添加id
item.setId(IdUtil.simpleUUID());
// 设置当前用户empCode
item.setEmpCode(empCode);
// 设置车间
item.setWorkshop(workshop);
// 设置工序
item.setGxName(gxName);
// 设置菜单
item.setMenu(menu);
// 是否排序标识
if (StrUtil.isNullOrUndefined(item.getSortable())) {
item.setSortable(Constants.GLOBAL_DISABLE);
}
// 是否显示标识
if (StrUtil.isNullOrUndefined(item.getShow())) {
item.setShow(Constants.GLOBAL_ENABLE);
}
// 保存
insert(item);
});
return true;
}
@Override
@ServiceExceptionHandler
public List<CustomTable> selectCustomTable(String workshop, String gxName, String menu, HttpServletRequest request) {
// 获取当前用户empCode
String empCode = getUserIdByRequest(request);
Example example = new Example(CustomTable.class);
Example.Criteria criteria = example.createCriteria();
criteria.andEqualTo("empCode", empCode);
criteria.andEqualTo("workshop", workshop);
criteria.andEqualTo("gxName", gxName);
criteria.andEqualTo("menu", menu);
example.setOrderByClause("sort ASC");
// 查询当前已保存的数据
List<CustomTable> currentList = selectExample(example);
// 返回结果
return currentList;
}
*/
export default {
computed: {
// 展示的列
showColumns () {
return this.currentColumns.filter(({ show }) => show === '1')
},
// 当前实际使用的列数据
currentColumns ({ customColumnsData }) {
if (customColumnsData.length) return customColumnsData
return this.originColumns
},
// 原始列数据
originColumns ({ condition: { gxName } }) {
// 根据业务，此处字段过滤是根据GX_WITH_XM工序字段
return this.COLUMNS_DATA.filter(({ filter }) => !(filter && (this.GX_WITH_XM || []).includes(gxName)))
}
},
data () {
return {
// 自定义列数据，查询得到
customColumnsData: [],
// 自定义列弹框
customTableVisible: false
}
},
methods: {
/**
* 获取自定义表格列数据，调用位置：初始化或者工序发生改变的位置
*/
getCustomTableColumns (workshop, gxName) {
this.$http.request({
url: '/admin/sys/v1/table/columns',
method: 'get',
params: {
workshop,
gxName,
menu: this.$route.path
}
}).then(({ result, data }) => {
if (result === 'success' && data && data.length) {
// 数据校验，针对prop、label
const currentColumns = data.map(({ prop, label }) => ({ prop, label })).sort((a, b) => {
if (a.prop > b.prop) return 1
if (a.prop < b.prop) return -1
return 0
})
const originColumns = this.originColumns.map(({ prop, label }) => ({ prop, label })).sort((a, b) => {
if (a.prop > b.prop) return 1
if (a.prop < b.prop) return -1
return 0
})
if (JSON.stringify(originColumns) === JSON.stringify(currentColumns)) {
// 数据一致使用保存的列数据
this.customColumnsData = data
} else {
this.$msg('任务列表列数据发生更新，请重新设置自定义列')
this.customColumnsData = []
}
} else {
this.customColumnsData = []
}
}).catch(() => {
this.customColumnsData = []
})
},
/**
* 自定义按钮调用
* <div slot="header" class="table-with-custom-operation">
* <span>操作</span>
* <Tooltip content="自定义列" placement="left">
* <i class="el-icon-s-operation" @click="() => customTableHandle(currentWorkshop.workshop, condition.gxName)"></i>
* </Tooltip>
* </div>
*/
customTableHandle (workshop, gxName) {
setTableColumns({
columns: this.currentColumns,
originColumns: this.originColumns,
onSave: (columns, { close, loading }) => {
// loading start
loading(true)
this.$http.request({
url: '/admin/sys/v1/table/columns',
data: {
workshop,
gxName,
menu: this.$route.path,
list: JSON.stringify(columns)
}
}).then(({ message, result }) => {
this.$msg({
message,
type: result === 'success' ? 'success' : 'error'
})
this.customColumnsData = columns
close()
if (this.$refs.tableRef) {
setTimeout(() => {
this.$refs.tableRef.doLayout && this.$refs.tableRef.doLayout()
}, 1)
}
}).finally(() => {
// loading end
loading(false)
})
}
})
}
}
}
ElementUI-Table，嵌套表格
<!-- 全局样式 -->
<style lang="scss">
.table-column-no-padding {
padding: 0 !important;
>.cell {
padding: 0 !important;
}
}
</style>
<!-- 某一单元格嵌套，不带表头 -->
<template>
<Table :data="list">
<TableColumn header-align="center" align="center" min-width="140" prop="a" label="AA" />
<TableColumn header-align="center" align="center" min-width="300" prop="b" label="BB" class-name="table-column-no-padding">
<table slot-scope="{ row, $index }" class="inner-table">
<tr v-for="(item, i) in row.items" :key="`${$index}_${i}`">
<td style="width: 20%" v-text="item.b1"></td>
<td style="width: 30%" v-text="item.b2"></td>
<td style="width: 30%" v-text="item.b3"></td>
<td style="width: 20%" v-text="item.b4"></td>
</tr>
</table>
</TableColumn>
<TableColumn header-align="center" align="center" min-width="140" prop="c" label="CC" />
</Table>
</template>
<!-- 带表头 -->
<template>
<Table :data="list">
<TableColumn header-align="center" align="center" min-width="150" prop="a" label="AA" show-overflow-tooltip />
<TableColumn header-align="center" align="center" min-width="180" prop="b" label="BB" show-overflow-tooltip />
<TableColumn header-align="center" align="center" min-width="700" class-name="table-column-no-padding">
<table slot="header" class="inner-table">
<tr>
<th style="width: 20%">B1</th>
<th style="width: 30%">B2</th>
<th style="width: 30%">B3</th>
<th style="width: 20%">B4</th>
</tr>
</table>
<table slot-scope="{ row, $index }" class="inner-table">
<tr v-for="(item, i) in row.items" :key="`${$index}_${i}`">
<td style="width: 20%" v-text="item.b1"></td>
<td style="width: 30%" v-text="item.b2"></td>
<td style="width: 30%" v-text="item.b3"></td>
<td style="width: 20%" v-text="item.b4"></td>
</tr>
</table>
</TableColumn>
</Table>
</template>
<!-- 局部样式 -->
<style lang="scss" scoped>
table.inner-table {
width: 100%;
border-spacing: 0;
tr {
td, th {
text-align: center;
box-sizing: border-box;
&:last-child {
border-right: 0;
margin-left: -1px;
}
}
&:last-child {
td, th {
border-bottom: 0;
}
}
}
}
</style>
Echarts地图下钻
<template>
<div class="map-wrap">
<div ref="mapRef" class="map-container" v-loading="loading"></div>
<Button v-if="currentLevel" type="primary" @click="goBack">返回</Button>
<Alert class="help" type="primary" show-icon :closable="false" title="鼠标单击查看地区详情，双击查看区域地图" />
</div>
</template>
<script>
import Mixins from '_m/mixins-chart-common'
const levelTree = {
province: { prev: '', next: 'city', cityNext: 'district' },
city: { prev: 'province', next: 'district' },
district: { prev: 'city', next: '', cityPrev: 'province' }
}
const rootCode = '100000'
const cityMark = name => (name.endsWith('市') || name.endsWith('特别行政区'))
const NO_DATA_IGNORE = ['台湾省']
export default {
name: 'Map',
mixins: [Mixins],
data () {
return {
loading: false,
mapData: null,
provinceCode: '',
provinceName: '',
cityCode: '',
cityName: '',
districtCode: '',
districtName: '',
currentLevel: '',
clickTimer: null
}
},
methods: {
goBack () {
const { prev } = levelTree[this.currentLevel]
this.currentLevel = prev
const code = this[`${prev}Code`]
this.loadMap(code)
},
init () {
const chart = this.$echarts.init(this.$refs.mapRef)
chart.setOption({
grid: {
top: 0,
left: 0,
right: 0,
bottom: 0
},
tooltip: {
trigger: 'item',
formatter: '{b}<br/>{c}'
}
})
this.chart = chart
this.loadMap(rootCode)
// 单击事件
chart.on('click', ({ name }) => {
this.clickTimer && clearTimeout(this.clickTimer)
this.clickTimer = setTimeout(() => {
console.log(name)
}, 250)
})
// 双击下钻
chart.on('dblclick', ({ name }) => {
this.clickTimer && clearTimeout(this.clickTimer)
if (NO_DATA_IGNORE.includes(name) || !this.mapData) return
const { next, cityNext } = this.currentLevel ? levelTree[this.currentLevel] : { next: 'province', cityNext: 'city' }
const n = cityMark(this.provinceName) ? cityNext : next
if (!n || n === 'district') return
const { properties } = this.mapData.features.find(({ properties }) => properties.name === name) || {}
if (properties) {
const { level, adcode } = properties
this.loadMap(`${adcode}`).then(() => {
this[`${level}Code`] = `${adcode}`
this[`${level}Name`] = name
this.currentLevel = level
})
}
})
},
loadMap (code = rootCode) {
this.loading = true
this.prevCode = code
return new Promise((resolve, reject) => {
fetch(`https://geo.datav.aliyun.com/areas_v3/bound/geojson?code=${code}${code.endsWith('00') ? '_full' : ''}`, {
method: 'GET',
mode: 'cors',
referrerPolicy: 'no-referrer'
}).then(res => {
this.loading = false
if (res.ok) {
return res.json()
} else {
reject(new Error('无法获取该区域地图'))
}
}).then(res => {
if (!res) {
reject(new Error('无法获取该区域地图'))
return
}
this.mapData = res
this.$echarts.registerMap(code, res)
this.chart.setOption({
series: [{
type: 'map',
name: code,
map: code,
zoom: code === rootCode ? 1.23 : 1,
top: code === rootCode ? 100 : 66,
selectedMode: false,
data: [
{ name: '山东省', value: 10057.34 },
{ name: '济南市', value: 20057.34 }
],
label: {
show: true,
fontSize: 9,
color: '#FFF',
borderColor: 'rgba(95, 117, 168, .4)',
backgroundColor: 'rgba(95, 117, 168, .4)',
shadowColor: 'rgba(95, 117, 168, .4)',
padding: 2,
borderRadius: 6,
shadowBlur: 4,
shadowOffsetX: 2,
shadowOffsetY: 2
},
itemStyle: {
areaColor: new this.$echarts.graphic.LinearGradient(1, 0, 0, 0, [{ offset: 0, color: '#84A0E4' }, { offset: 1, color: '#92AFF7' }]),
borderColor: '#FFF'
},
emphasis: {
label: {
color: '#FFF'
},
itemStyle: {
areaColor: '#718BCC'
}
},
select: {
label: {
color: '#FFF'
},
itemStyle: {
areaColor: '#718BCC'
}
}
}]
})
resolve()
}).catch(reject)
})
}
}
}
</script>
<style lang="scss" scoped>
.map-wrap {
width: 100%;
height: 100%;
position: relative;
.map-container {
width: 100%;
height: 100%;
}
button {
position: absolute;
top: 0;
right: 0;
}
.help {
position: absolute;
left: 0;
top: 0;
}
::v-deep .el-alert {
display: inline-flex;
width: auto;
padding: 6px 8px;
.el-alert__title {
font-size: 12px;
}
}
}
</style>
